SPC Flooring Panel Production Line

1	Twin Screw Extruder	1set
2	Mould	1set
3	5-roller Calender	1set
4	Temperature Controller	1set
5	Edge Cutting Unit	1set
6	Haul-off Machine	1set
7	Cutting Machine	1set
8	Auto-Stacker	1set
9	Electricity Control System	1set
10	EIR Tech	1set

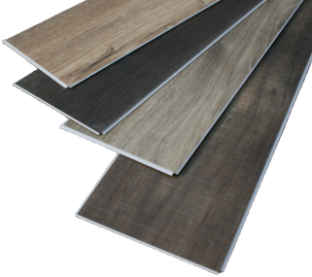

Product application

1.Environmental protection and no formaldehyde, SPC floor does not use glue in the production process, so it does not contain harmful substances such as formaldehyde and benzene. The real 0 formaldehyde green floor will not cause harm to the human body.
2.Waterproof and moisture-proof, SPC floor has the advantages of waterproof, moisture-proof, mildew-proof, etc., which solves the shortcomings of traditional wooden floors that are afraid of water and moisture, so SPC floors can be paved in bathrooms, kitchens, and balconies.
3.Anti-skid, SPC floor has good anti-skid performance, no longer have to worry about the floor becoming slippery and falling when it encounters water.
4.The weight is easy to transport, the SPC floor is very light and thin, the thickness is between 1.6mm and 9mm, and the weight per square is only 2-7.5kg, which is 10% of the weight of ordinary wooden floors.

Technical Parameter

Type	FCBM92/188	FCBM110/220
Product Size	L=970㎜, δ=3-8㎜	L=970㎜, δ=3-8㎜
Capacity	650-800KG/H	1500-1900KG/H
Calender	5-rollers calender	5-rollers calender
Roller	4×Φ450×1500mm 1×Φ600×1500mm	4×Φ450×1500mm 1×Φ600×1500mm
Surface Roughness	Ra≤0.025um	Ra≤0.025um
Surface Hardness	HRC≥50	HRC≥50
Extruder	SJSZ92/188 Twin Screw Extruder	SJSZ110/220 twin screw extruder
Main Motor	110KW Siemens motor,ABB inverter	185KW Siemens motor,ABB inverter

Detail Information

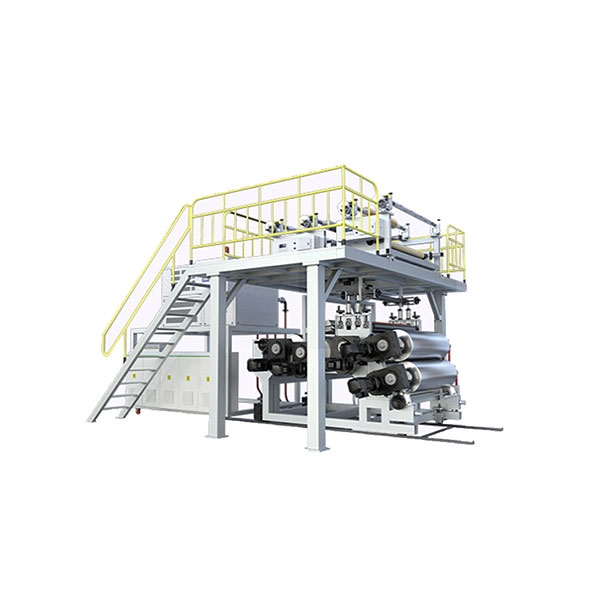

1.Calender
It is not adhesive PVC decoration film, magnetic powder brake. Film is put tighted by air swelling rollers, four-working stations. Using flattening roller to make the PVC decoration film smooth and flat, without any air bubbles. With infrared film adjusting system and tension adjust system to keep the film flat, smooth and non-deformation.

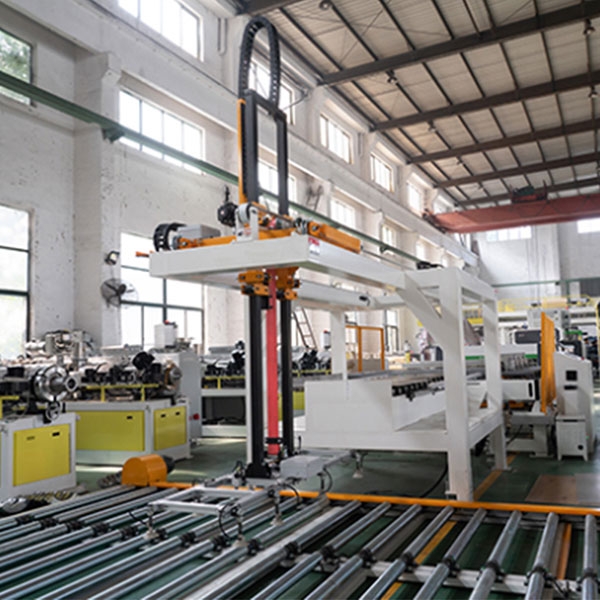

2.Stacker
The grasping and unloading plate manipulator is composed of a vacuum suction cup device, a lifting device and a moving device.
It is used for the composite movement of vertical lifting movement and horizontal movement, for picking up finished plates and profiles and arranging blank plates. The device realizes the automation of plate conveying.

3.Haul-off Unit
Working Speed Is Adjustable By Individual Inverter.
Conveying Belt Is Made From Imported Materials.
Galvanized Belt Roller.
5mm Conveying Belt.

Preguntas frecuentes

P: ¿su empresa es una fábrica o una empresa comercial?
R: somos una fábrica, nos dedicamos a este negocio durante 13 años.

P: ¿Entrenamiento de instalación y otras cosas disponible de usted?
R: Sí, nuestros ingenieros guiarán la instalación de la máquina y capacitarán a sus trabajadores.

P: ¿Cuál es el plazo de pago?
R: La mejor manera para ambos es un depósito del 30 % T/T y un pago del saldo del 70 % T/T antes del envío, ya que probaremos la máquina antes del envío. Por supuesto, puede elegir la forma que más le convenga (condiciones de pago: T/T, L/C, Western Union, etc.)

P: ¿Qué tal después del servicio?
R: podemos ofrecer 12 meses de garantía gratuita desde que la maquinaria llegó a su fábrica. También ofrecemos piezas de espacio o servicio de reparación a nuestro cliente en cualquier momento y en cualquier lugar, enviaremos a nuestro técnico a su fábrica si es necesario.

P: ¿Cómo llegar a nuestra fábrica?
R: Tomará 40 minutos desde el Aeropuerto Internacional de Shanghái hasta nuestra fábrica en automóvil, y haremos los arreglos para que nuestro conductor lo recoja en nuestra fábrica en cualquier momento.
